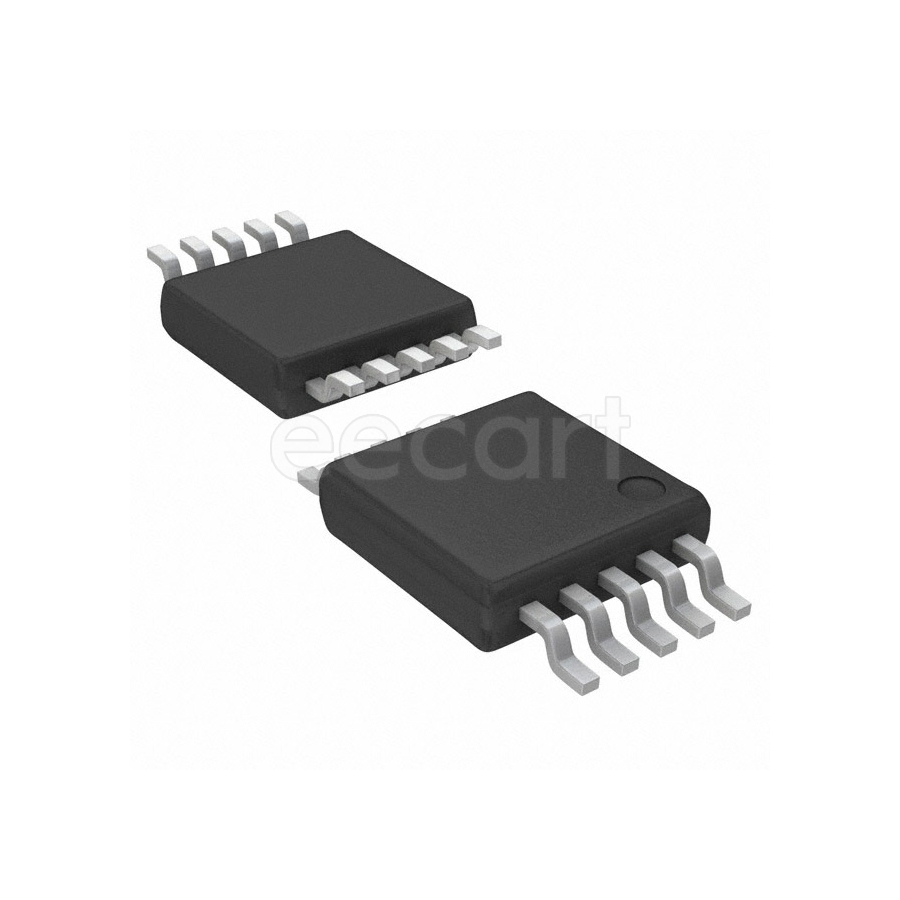

MAX668EUB+
Manufacturer:
Analog Devices / Maxim Integrated
Mfr.Part #:
MAX668EUB+
Datasheet:
Description:
Voltage Regulators - Switching UMAX-10 SMD/SMT Boost, Flyback, SEPIC Transistor Driver 100 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 1.1 mm |
| Frequency | 500 kHz |
| Output Current | 6 A |
| Output Voltage | 100 V |
| Max Power Dissipation | 444 mW |
| Max Supply Voltage | 28 V |
| Min Supply Voltage | 3 V |
| Power Dissipation | 444 mW |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Nominal Supply Current | 220 µA |
| Max Junction Temperature (Tj) | 150 °C |
| Max Duty Cycle | 94 % |
| Switching Frequency | 100 kHz to 500 kHz |
| Max Input Voltage | 28 V |
| Min Input Voltage | 3 V |
| Output Type | Transistor Driver |
| RoHS | Compliant |
| Packaging | Tube |
| Function | Step-Up, Step-Up/Step-Down |
Stock: 457
Distributors
pcbx
pcbxUnit Price$4.68074
Ext.Price$4.68074
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.68074 | $4.68074 |
| 10 | $3.61720 | $36.17200 |
| 25 | $3.37117 | $84.27925 |
| 50 | $3.14187 | $157.09350 |
| 100 | $3.01020 | $301.02000 |
| 300 | $2.91816 | $875.44800 |
| 500 | $2.82896 | $1414.48000 |
| 1000 | $2.68448 | $2684.48000 |
